Dynemech Screw Support Mounts Series DLK

Dynemech Screw Support Mounts Series DLK

Price :
₹ 488.00
GST inclusive
Model:
Quantity:
Add to Cart

Model

Load (kg/pc)

Bolt size

D

H

Adj. range

DLK1

580

M12x100

92

50

10

DLK2

1200

M16x100

135

50

10

DLK3

2900

M20x150

195

58

12

DLK4

4000

M24x150

238

78

20

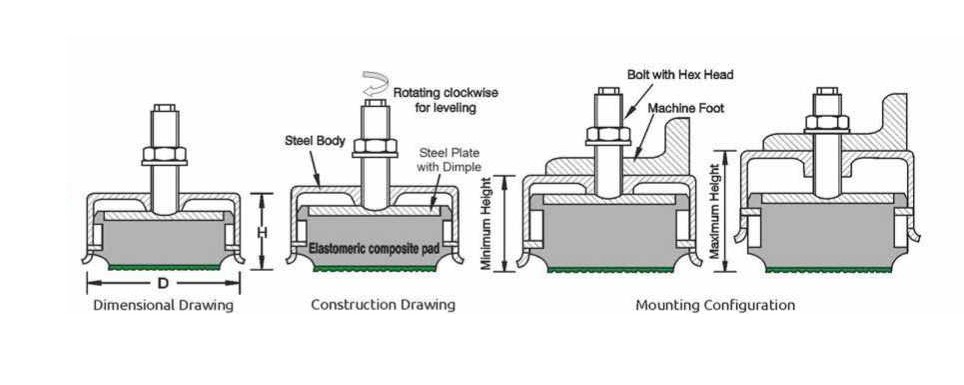

  • Dynemech screw support mounts series DLK are simple and effective vibration dampers for effective vibration damper for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine leveling. the DLK series vibration damping and levelling mounts. provide fast and easy installation of machines DLK series anti vibration mounts have steel body are used for machines having mounting holes in the base. the leveling mount has a cover plate and dimpled bottom plate holding the insulation plate levelling is done by tightening the bolt which lifts the cover plate with the machine base.
  • Dynemech screw support mounts series DLK4 are suitable for heavy machine installations. they provide additional damping in shear and radial directions.
