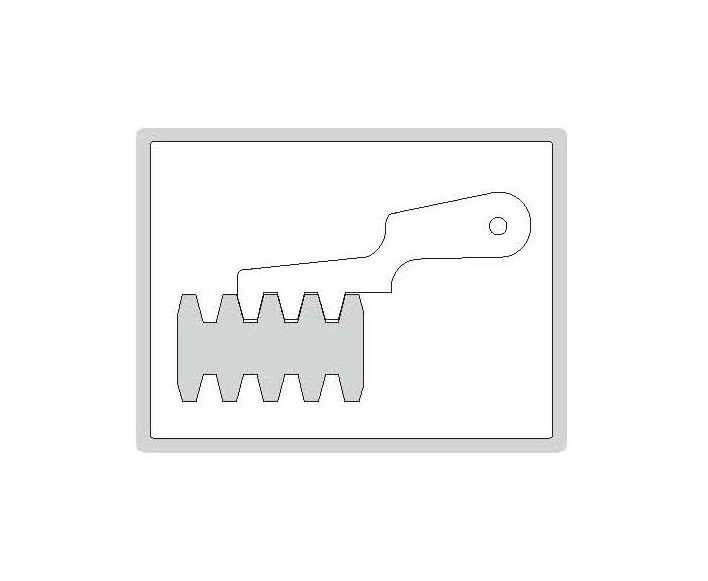

Insize Pitch Gage 4824

Code

Range

Thread type

Pitch of leaves included

Quantity of leaves

4824-12

2-20mm

Tr30°

2,3,4,5,6,7,8,9,10,12,16,20mm

12

4824-16

1-12TPI

ACME29°

1,1-1/3, 1-1/2, 1-3/4, 2, 2-1/2, 3,

3-1/2, 4, 5, 6, 7, 8, 9, 10, 12TPI

16
