Price :

₹ 33453.00

GST inclusive

Code:

Quantity:

Add to Cart

Order no	Range	Resolution	Spindle feed error
324-252	25-50mm	0.001mm	3µm

Measuring over -pin diameter of gear using precision steel (or carbide) bal anvils/spindle tips.

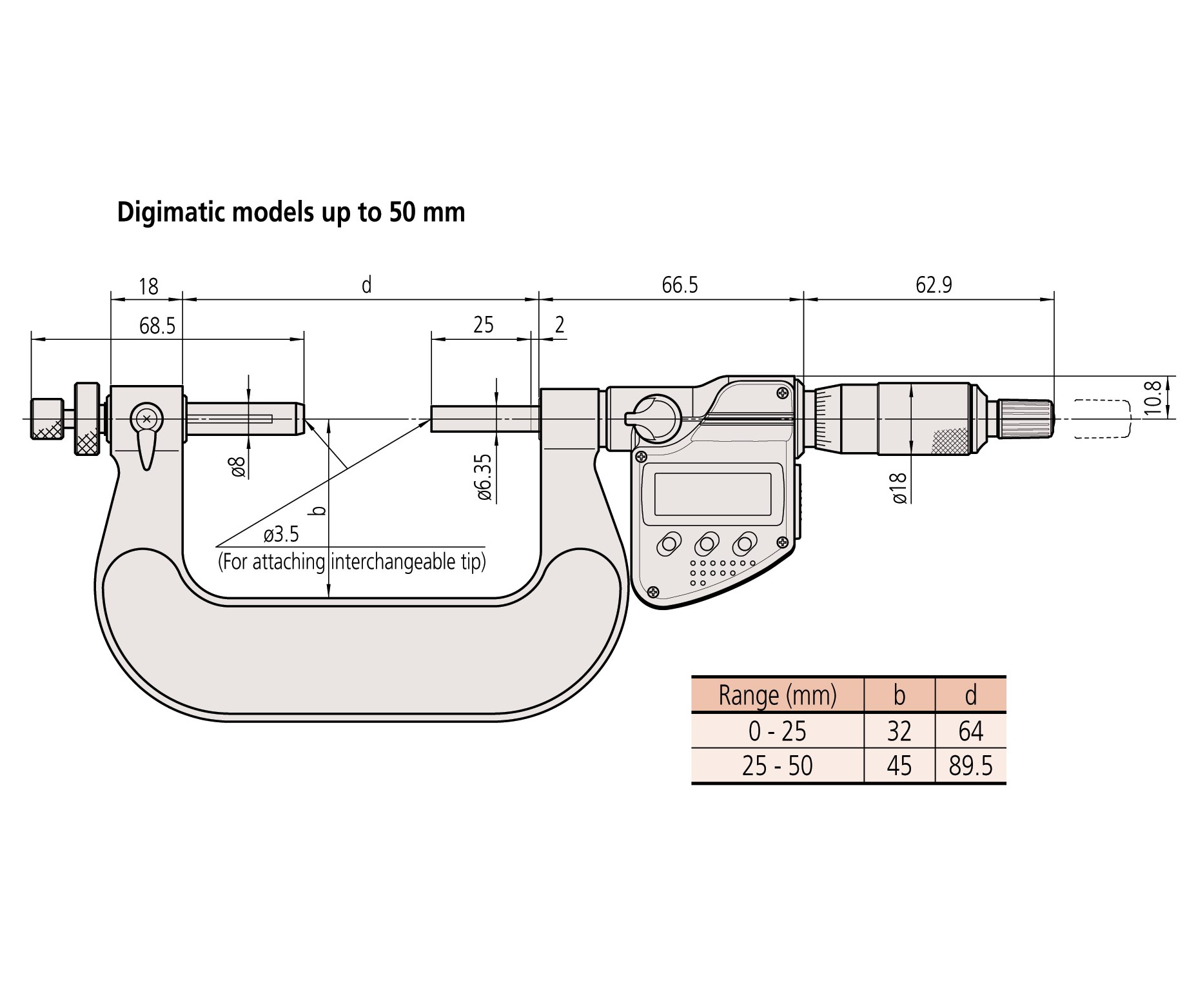

Series 324: IP65 digimatic gear tooth micrometer
Determination of the over pin diameter:refer to "quick to precision measuring instruments"
Interchangeable ball anvils/spindle tips for various gear modules (0.5 to 5.25) are optional.
Equipped with ratchet stop for constant measuring force.
Ball anvils/spindle tips: optional

Mitutoyo Gear Tooth Micrometer 324
