PRODUCT DETAILS | TOOLBABA

Price :

₹ 830.00

GST inclusive

Model:

Quantity:

Add to Cart

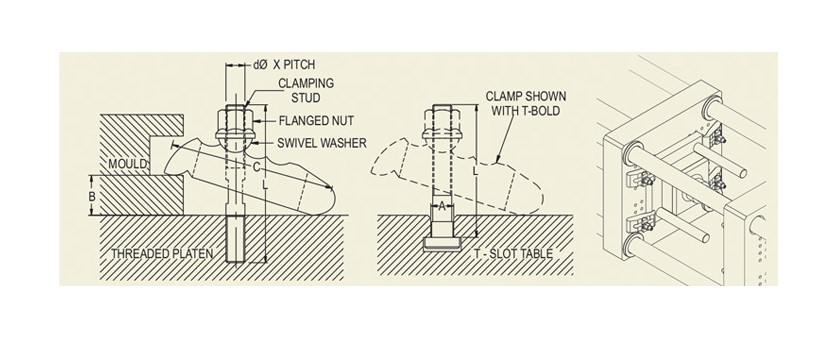

Mould clamp is designed specially for low height application onlu such as clamping of moulds on plastic injection moulding machines & pressure die casting machines the compact front portion of the clamp enable it to penetrate into the limited clamping area of the mould clamp it. the positioning of forged swivel washer on required curved groove enable the operator to set the center distance between the clamping portion and the clamping bolts as per the hearesr tapped hole available on plate (where these are no T-slots) no supports are required at the rear of the clamp as the rear portion rests on the platen and front holds the mould flanged nut is tightened on the swivel washer which takes care of the clamps are equally usefull on pressure die casting machines, hydraulic presses & power presses where low height clamping is done

Toolfast Mould Clamp
