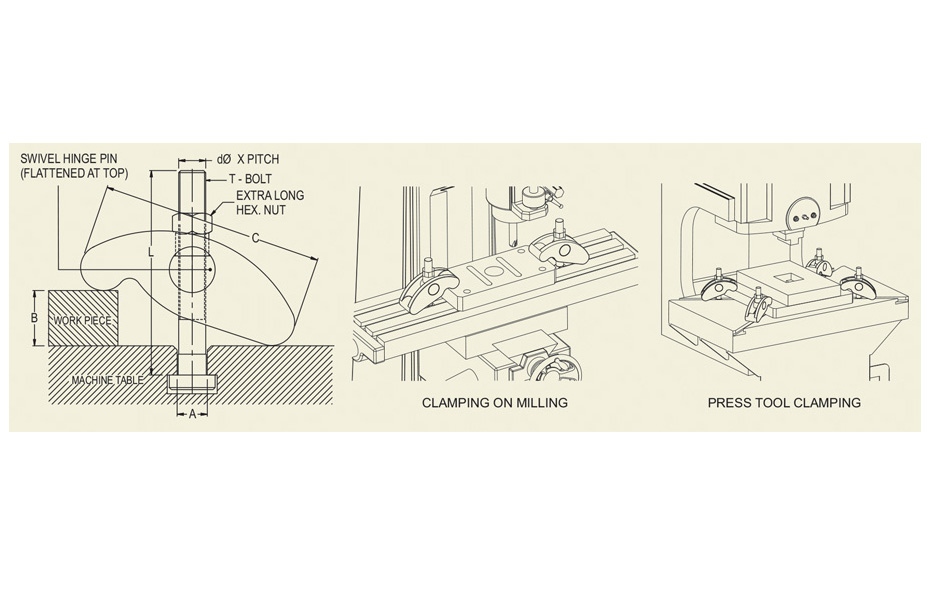

Universal Strap Clamp is suitable for dia clamping on power presses and a very usefull clamp for job clamping on 'T' slot tablw of drilling, millng, spring, boring and other machines tools. no support are at the rear of clamp since the body of the clamp is self-positioning as the rear part rests on the table and fornt holds the job the body positions itself with the help of swivel hinge pin according to the thickness of the workpiece, the T-bolt remaining in vertical position and the nut is tightened on the flatted portion of swivel hinge pin
Clamp is supplied complete with hardened T-bolts special nut
Tool fast universal strap clamp is most suitable for die clamping on power presses.
A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
Clamp is supplied complete with hardened T-Bolt & special nut.
The body positions itself with the help of swival hinge pin according to the thickness of the work piece.

Toolfast Universal Strap Clamp USC
