Unique Precision Milling Machine Vice J & S Type Fixed Base U348N

Unique Precision Milling Machine Vice J & S Type Fixed Base U348N

Price :
₹ 11221.00
GST inclusive
U348N:
Quantity:
Add to Cart

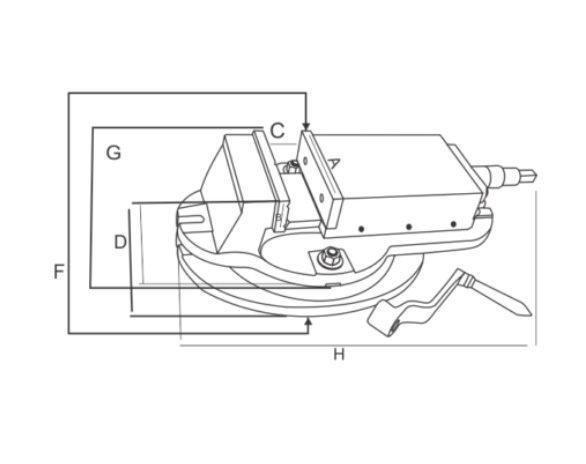

Sizes in Inches

4

6

8

A

Width of jaws in mm

100

150

200

B

Depth of jaws in mm

40

50

58

C

Opening of jaws in mm

100

150

200

E

Height overall in mm

90

110

130

G

Width overall in mm

152

248

300

H

Length overall in mm

340

490

670


Tenon slot size in mm

16

20

20


Weight (Approx) in kgs.

13

35

63



  • Fitted with Thrust Bearing for Smooth Movement Sturdy & accurately made machine vices from graded casting.
  • Body and base are made of special high strength fine-grain Cast iron for toughness and rigidity.
  • Moving Jaw run in long Prismatic slides with provision for wear adjustment.
  • The removable hardened steel Jaws. Fix jaw provided with "V" grooves.
  • The totally enclosed acme thread adjusting screw with a replacable screw bushing & thrust collar.
  • The vice can be fitted to the tool table with or without the 360º graduated base.
  • The vice can be centered using longitude tenon slots. Supplied complete with handle.
  • Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
  • Supplied with Stopper for Fast Production.
